Hi everyone

I started setting up Hexahedral mesh in TCAS-lite with Axial design and simulation (Axial Fan Design and Simulation – CFD SUPPORT).

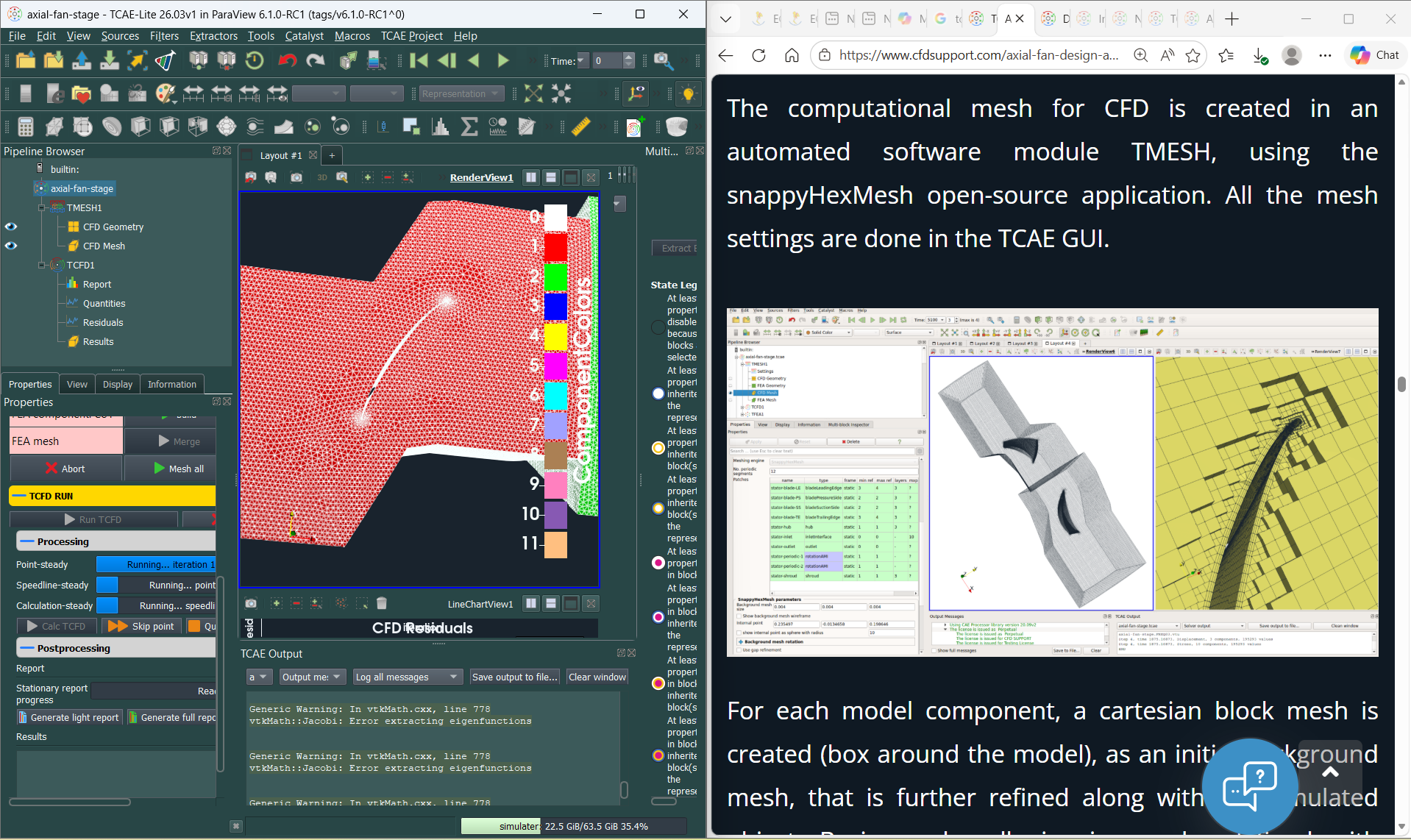

After finishing mesh generation, please see in attached picture, I found mesh created shown as Tetrahedral mesh (left side) but in tutorial report be Hexahedral mesh.

I am new user for TCAE. I'm thing there something wrong during my first setup.

Is there any suggestion for make Hexahedral mesh?
